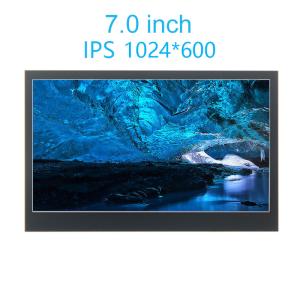

• 7.0 inch Without Touch Panel 800*480 MIPI IPS TFT DSI Multi-Touch LCD Module Display Monitor Screen for Raspberry Pi
• Product introduction

• IPS full viewing angle display○1024X600 HD resolution, up to 178° full viewing angle panel

  Use as a Raspberry Pi display

  ○Support Raspberry Pi back-to-back direct installation and locking

  ○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.

  ○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control, plug-and-play driver-free.

  Use as a mini PC monitor

  ○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC monitors to display

  Mountable bracket

  ○ Equipped with a 60° bracket, easy to install, simple and practical, and a vertical display in seconds

  Adjustable backlight

  ○Built-in backlight adjustment button, backlight brightness can be adjusted as needed

  Built-in audio system (optional)

  ○Optional high-fidelity stereo dual systemspeaker

Description

This is a 7-inch DSI screen with a resolution of1024*600 and a display area of 153.84*85.63mm. It supports direct output of Raspberry Pi MIPI DSI interface, plug and play, no need to install drivers. The 7 inch DIS display also supports multiple systems Ubuntu, Kali, etc. For example, it has a backlight brightness adjustment button, supports PWM backlight brightness adjustment, and adapts to different use environments.

Feature

• 1024x600 resolution capacitive touch display

• Raspberry Pi MIPI DSI interface direct output, plug and play, driver free

• Support official system Raspbian, web page 2-finger zoom;

• Support Ubuntu/Kali/Win10 IoT, single touch;Support Retropie

• Built-in backlight brightness
  adjustment button, supports PWM backlight brightness adjustment, adapts
  to different use environments

Specification

• Size:7 inch

• Resolution:1024*600

• LCD Interface Type: RGB888 Port

• Module Interface Type: MIPI DSI

• Refresh Rate: 60Hz

• Touch Type: Without touch

• View Angle: IPS Full Viewing Angle

• Active Area: 153.84*85.63mm

• Operating Voltage: 3.3v

• Maximum operating current: 510mA

• Maximum Brightness: 300cd/m²

• Operating temperature: -20℃-70℃

• External dimension:164.9*102*12.25mm

• Package Size:212*149*54mm

• Weight:236g

Package List

• 1x 7 inch Touch DSI Display

• 1x FFC-1.0-15P-10cm

• 1x FFC-1.0-15P-5cm

• 4x Screw(M2.5*4mm)

• 4x Screw(M2.5*12mm)

• 4x Copper pillar(M2.5)

• 2x bracket
